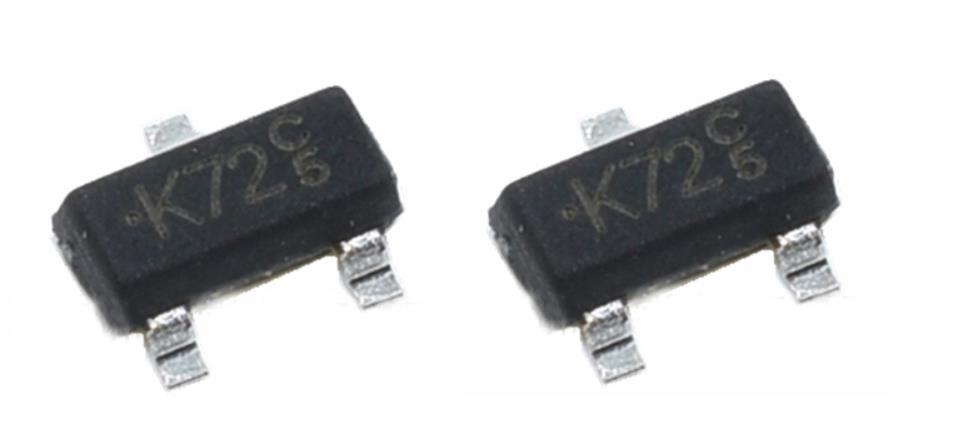

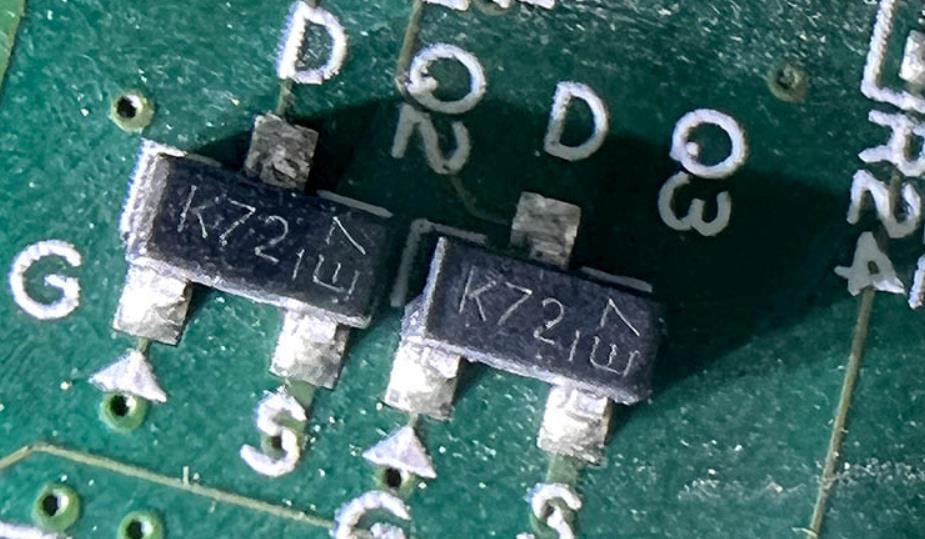

2N7002-7-F is a 60V 115mA N-channel enhancement mode field effect transistor marked K72 on the silk screen, in SOT-23 package, on the Antminer S9 control board. This MOSFET is designed to minimize on-resistance (RDS(ON)) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.

Product parameter:

Drain Source Voltage (Vdss): 60V

Continuous Drain Current (Id): 115mA

Drain Source On Resistance (RDS(on)@Vgs,Id): 7.5Ω@5V,50mA

Power Dissipation (Pd): 370mW

Gate Threshold Voltage (Vgs(th)@Id): 2.5V@250uA

Type: N Channel

Feature:

• Low on-resistance

• Low gate threshold voltage

• Low input capacitance

• Fast switching speed

• Small surface mount package

Application:

• motor control

• Power management functions

• S9 control board
