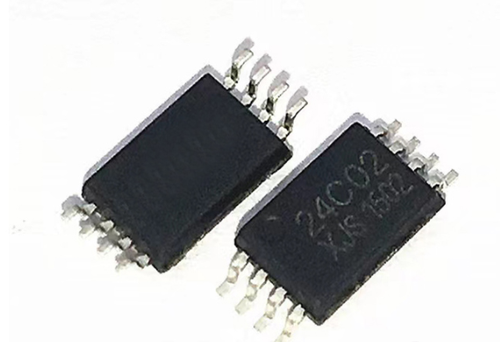

The AT24C02C provides 2048-bit serial electrically erasable programmable read-only memory (EEPROM) organized as 256 words of 8 bits each. The device is organized as a 256 x 8 block and is optimized for consumer, industrial, and automotive applications where reliable and reliable non-volatile memory storage is essential.

Feature:

• Low and standard voltage operation

– VCC = 1.7V to 5.5V

• Internal organization 256 x 8 (2K)

• Two-wire serial interface

• Schmitt trigger, filtered input for noise rejection

• Two-way data transfer protocol

• 1MHz (5V), 400kHz (1.7V, 2.5V, 2.7V) compatibility

• Write protect pin for hardware data protection

• 8-byte page (2K) write mode

• Allow partial page writes

• Self-timed write cycle (5 ms max)

• High reliability

– Endurance: 1 million write cycles

– Data retention: 100 years
