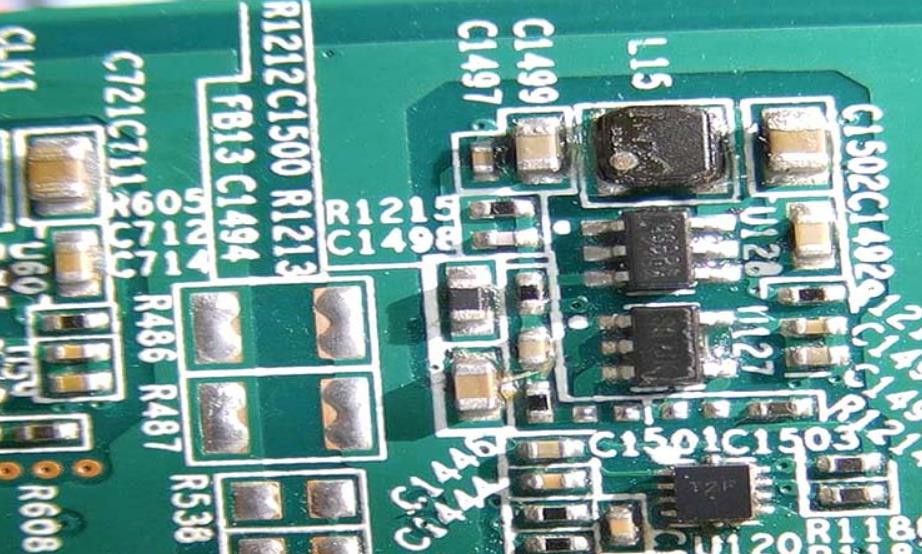

NCT218 is a temperature sensor chip marked T2* by silkscreen. The common silkscreen is T2F, T2Y, T2H, etc. It is mainly used on hash boards such as S17+ and S17E.

The NCT218 is a dual−channel digital thermometer and under temperature / over temperature alarm, intended for use in thermal management systems requiring low power and size.  The NCT218 can measure the temperature of a remote thermal diode accurate to ±1°C and the ambient temperature accurate to ±1.75°C. The device operates over a wide temperature range of −40°C to +125°C.

Features:

Small DFN Package

On−Chip and Remote Temperature Sensor

Low Voltage Operation: 1.4 V to 2.75 V

Low Quiescent Current:

44 A Normal Mode (max)

20 A Shutdown (max)

Power Saving Shutdown Mode

Operating Temperature Range of −40°C to 125°C

Series Resistance Cancellation up to 500

Low D− bias for Operation with Low Voltage Processors

2−wire I2C Serial Interface

Programmable Over/Undertemperature Limits

Applications:

Smart Phones, Tablet PCs, Satellite Navigation, Smart Batteries

s9 temperature control chip IC
