TMP421/TMP421AIDCNR Single Channel Remote Junction Temperature Sensor

The TMP421 is a remote temperature sensor monitor with a built-in local temperature sensor. The remote temperature sensor diode-connected transistors are typically low-cost, NPN- or PNP-type transistors or diodes that are an integral part of microcontrollers, microprocessors, or FPGAs.

The TMP421 includes series resistance cancellation, programmable non-ideality factor, wide remote temperature measurement range (up to +150°C), and diode fault detection, and is available in a SOT23-8 package.

Attributes:

Model: TMP421AIDCNR

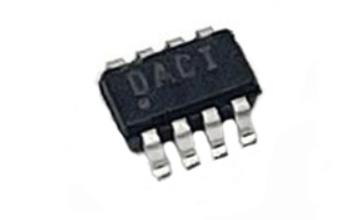

Packaging Marking: DACI

Two-wire address: 100 11xx

Package designator: DCN

Feature:

±1°C remote diode sensor (max)

±1.5°C local temperature sensor (max)

Series Resistor Cancellation

n-factor correction

Two-wire / SMBus™ serial interface

Multiple interface addresses

Diode fault detection

RoHS Compliant and Sb/Br Free

Application:

Processor/FPGA temperature monitoring, LCD/DLP®/LCOS projectors, servers, central office telecom equipment, storage area network (SAN).
