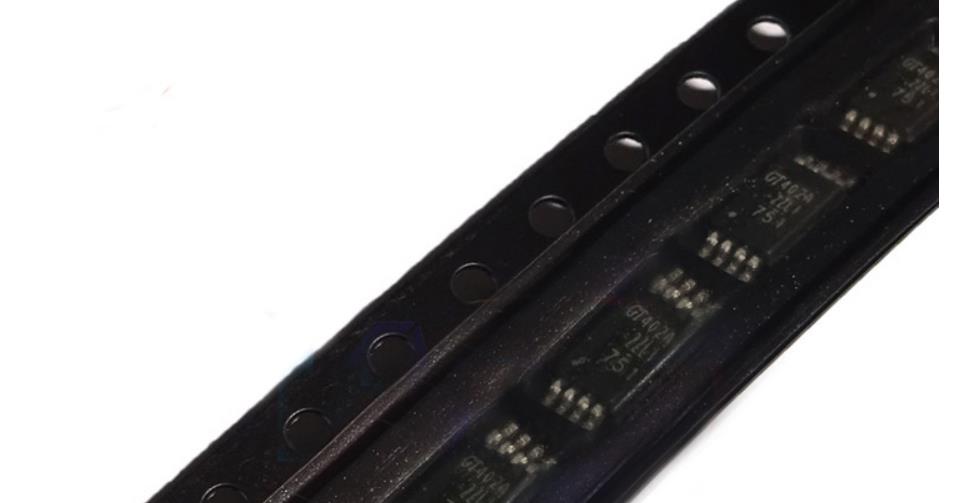

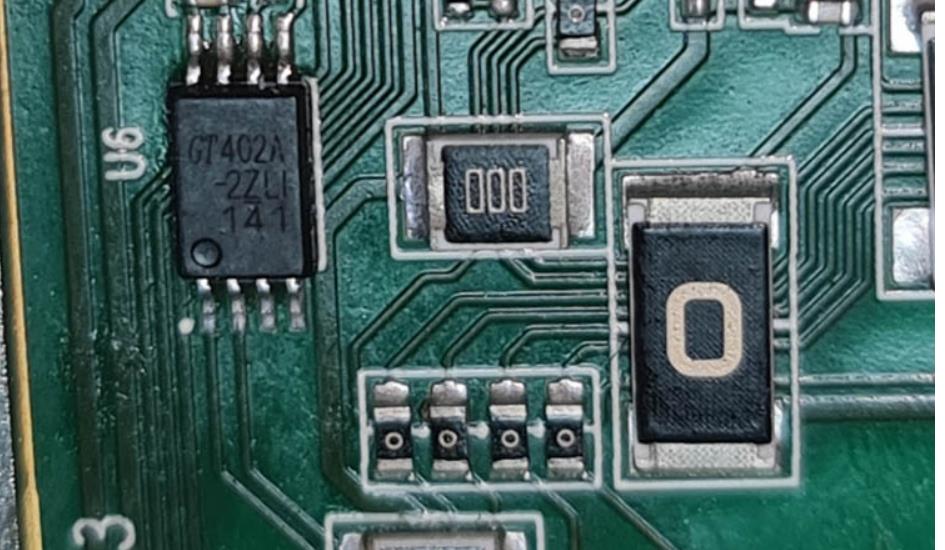

The GT24C02A is an industry-standard electrically erasable programmable read-only Memory (EEPROM) device located on the S19 hash board, which uses an industry-standard 2-wire interface for communication, and contains a 2K-bit (256x8) memory array, with each page are organized in 16-byte form. The EEPROM operates over a wide voltage range of 1.7V to 5.5V, providing low power operation and low standby current. The device is available in lead-free, RoHS, halogen-free, or green packages. GT24C02A is compatible with standard 2-wire bus protocol. The simple bus consists of a serial clock (SCL) and serial data (SDA) signals.

Features:

• Two-Wire Serial Interface, I2CTM Compatible

– Bi-directional data transfer protocol

• Wide-voltage Operation

– VCC = 1.7V to 5.5V

• Speed: 400 KHz (1.7V) and 1 MHz (2.5V~5.5V)

• Standby current (max.): 1 uA, 1.7V

• Read current (max.): 0.5 mA, 5.5V

• Write current (max.): 0.5 mA, 5.5V

• Hardware Data Protection

– Write Protect Pin

• Sequential & Random Read Features

• Memory organization: 2Kb (256 x 8)

• Page Size: 16 bytes

• Page write mode

– Partial page writes allowed

• Self-timed write cycle: 5 ms (max.)

• Noise immunity on inputs, besides Schmitt trigger

• High-reliability

– Endurance: 1 million cycles

– Data retention: 100 years

• ESD Protection > 4000V

• Industrial grade

• Lead-free, RoHS, Halogen free, Green
