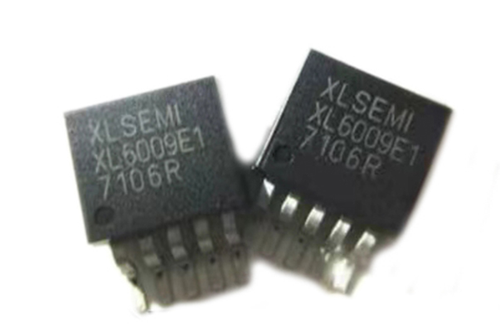

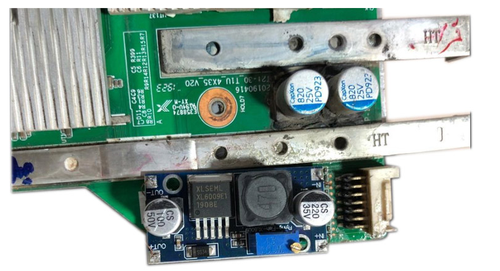

XL6009E1 400KHz 60V 4A is a wide input range, current mode, DC/DC converter capable of generating positive or negative output voltage, and it is located on an Innosilicon T2TZ hash board. It can be configured as a boost, flyback, SEPIC, or inverting converter. The XL6009 has a built-in N-channel power MOSFET and a fixed-frequency oscillator with a current-mode architecture for stable operation over a wide range of supply and output voltages.
Feature:
• Wide Input Voltage Range from 5V to 32V
• Positive or negative output voltage programming using a single feedback pin
• Current mode control provides an excellent transient response
• 1.25V reference adjustable version
• Fixed 400KHz switching frequency
• Maximum 4-A switch current
• SW PIN built-in overvoltage protection
• Excellent line and load regulation
• EN PIN TTL shutdown capability
• Internal optimized power MOSFET
• Efficiency up to 94%
• Built-in frequency compensation
• Built-in soft-start function
• Built-in thermal shutdown function
• Built-in current limiting function
• Available in TO263-5L package
